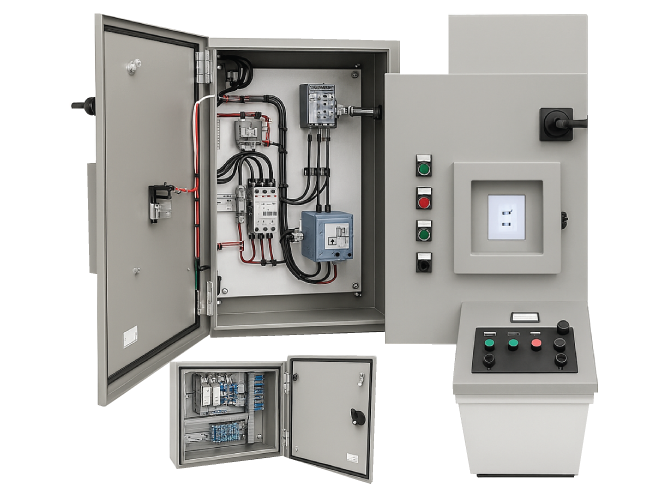

Industrial Control Solutions – UL 508A Custom Panels & Automation Systems Engineered for Serviceability

At Pinnacle Power & Controls, we design and build UL 508A‑listed industrial control panels and automation systems for facilities where safety, efficiency and uptime are mission‑critical. Whether you need a single motor starter panel or a suite of PLC/SCADA cabinets for a process line, our control solutions are engineered from the ground up to match your voltage, I/O, enclosure and networking requirements.

Our portfolio spans custom control panels, VFD control panels, PLC/SCADA & HMI panels and OEM‑branded systems, all fabricated in our UL‑certified panel shop in Missouri. Each build combines robust components, clean wiring layouts and serviceable designs to minimise downtime and simplify maintenance.

Whether you’re powering a 480 V pump station, integrating a 600 V motor drive or automating a remote plant with EtherNet/IP or Modbus TCP, our engineer‑to‑engineer team delivers fit‑to‑spec control solutions — rapidly and reliably.

Why Industrial Control Solutions Matter

Industrial control panels are the nerve centres of equipment and processes. They centralise power distribution, control logic and machine protection within a UL‑listed enclosure, allowing operators to start, stop and monitor machinery from a single point. Poorly designed panels can lead to unplanned downtime, unsafe conditions and code violations; well‑engineered panels deliver safe operation, efficient maintenance and room for growth.

Our UL 508A‑certified control solutions support up to 600 V and are built to NEMA 1/3R/4X/12 or Class I Div 2 specifications. Modern panels integrate PLCs, HMIs and industrial networking (such as EtherNet/IP and Modbus TCP) to provide diagnostics, alarms and remote control. Proper labelling, documentation and serviceable layouts make troubleshooting and upgrades straightforward.

Reliable control panels deliver:

  • Safety & Compliance – UL 508A certification and adherence to NEC, NFPA 79 and ANSI/ISA standards reduce the risk of fire, shock and penalties.
  • Process Efficiency – Right‑sized logic and automation improve throughput and reduce operator error.
  • Serviceability – Clean wiring, labelled terminations and QA records simplify maintenance and troubleshooting.
  • Scalability – Modular sections and standardised wiring make expansion or upgrades painless.

Our Control Solutions Line‑Up

Below you’ll find an overview of the automation and control systems we deliver. Each category links to a detailed service page where you can learn more about technical specifications, options and typical applications.

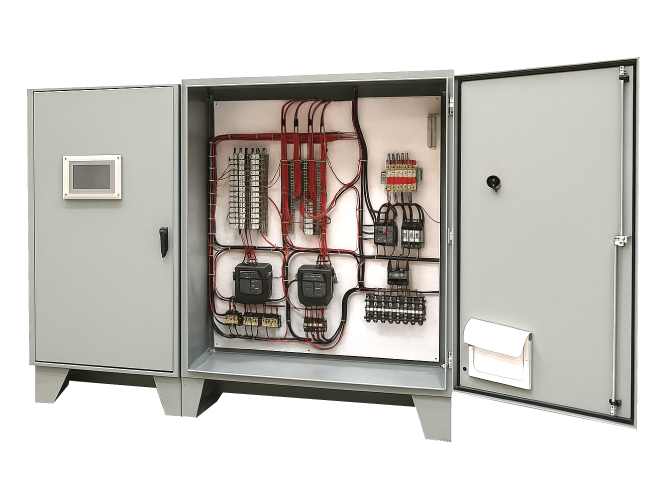

Custom Control Panels (UL 508A)

Pinnacle’s custom control panels are engineered to meet your specific voltage, I/O, enclosure, and automation requirements. These panels centralize motor control, pump contro,l or complex process automation within a single enclosure built to UL 508A standards.

  • Voltage & ratings – Up to 600 V AC; tailored to your current and fault requirements.
  • Enclosures – NEMA 1, 3R, 4X or 12 options, with Class I Div 2 designs for hazardous locations.
  • Control architectures – Relay logic, PLC/HMI or hybrid designs; analog, digital, and networked I/O.
  • Documentation – Delivered with point‑to‑point schematics, panel schedule,s and QA records for AHJ review.

👉 Explore our Custom Control Panels

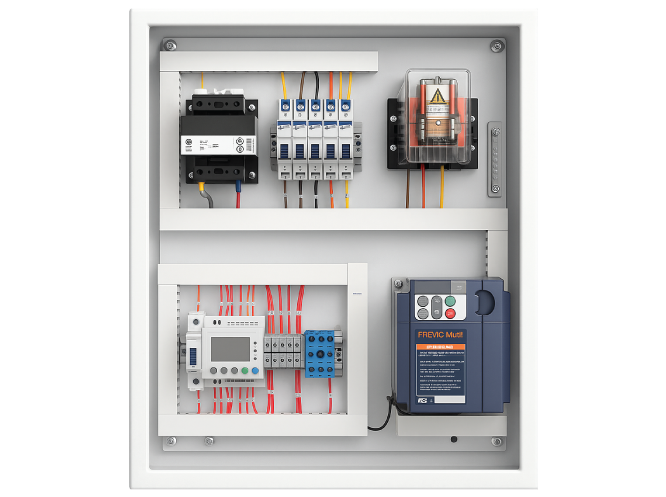

VFD Control Panels

Variable frequency drive (VFD) panels provide precise motor control, energy efficiency and smooth starting for pumps, fans, conveyors and other rotating equipment. Pinnacle designs and builds UL 508A‑listed VFD panels with integrated protection and clean operator interfaces.

  • Drive configurations – Single‑ or multi‑drive panels, with bypass contactors and line reactors/filters for motor protection.
  • Voltage & ratings – Supports 480 V and 600 V applications; other voltages available on request.
  • Controls & interfaces – Incorporates protective relays, overloads, HMIs and PLCs for coordinated control and diagnostics.
  • Applications – Pumping systems, HVAC, compressors, conveyors and process drives.

👉 See our VFD Control Panels

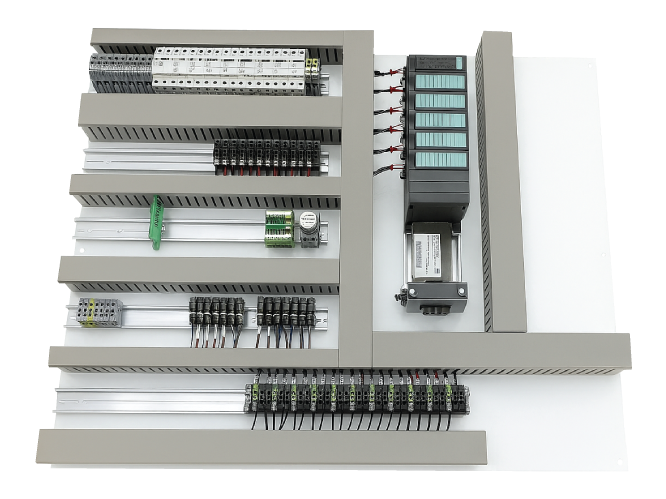

PLC/SCADA & HMI Panels

PLC/SCADA and HMI panels provide intelligent automation, monitoring and data acquisition for complex processes. Pinnacle builds UL 508A‑certified control panels using leading PLC platforms and industrial networking protocols.

  • Platforms & protocols – Supports Allen‑Bradley, Siemens, Schneider and other PLCs; EtherNet/IP, Modbus TCP, Profibus and more.
  • I/O & networking – Remote I/O modules, distributed control, data logging and alarm management.
  • Visualization – Integrated HMIs with secure, intuitive screens; remote access and diagnostics.
  • Applications – Water and wastewater treatment, oil & gas telemetry, manufacturing automation, utilities and energy management.

👉 Learn more about our PLC/SCADA & HMI Panels

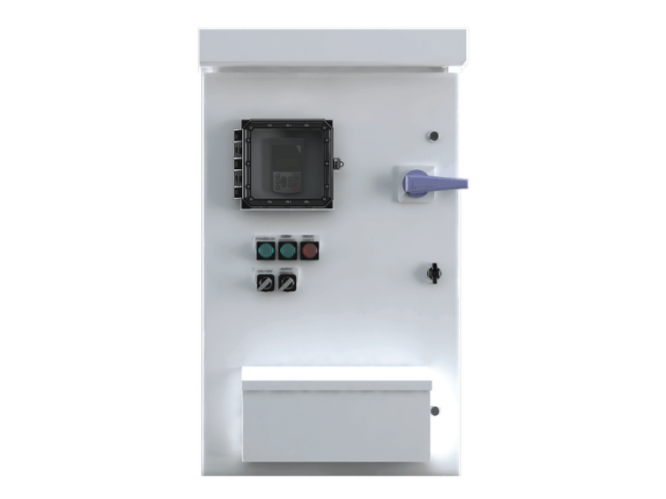

OEM Control Panels

For equipment manufacturers and skid package builders, Pinnacle provides private‑label control panels built to your standards. OEM panels carry your branding, part numbers and documentation, while leveraging our UL 508A shop and production capabilities.

  • Custom branding – Nameplates, engravings, wiring labels and documentation reflect your brand.
  • Repeatability – Standardized designs ensure consistent production quality across batches and model lines.
  • Integration – Panels are engineered to fit seamlessly into your machine or enclosure, ready for drop‑in installation.
  • Compliance – All panels are UL 508A‑listed and supplied with complete schematics and QA records.

👉 Discover our OEM Control Panels

Technical Specifications & Capabilities

Our control solutions are designed to meet diverse voltage, current, and environmental requirements. Here’s an at‑a‑glance summary of our core technical capabilities:

Specification

Description

Voltage range

Up to 600 V AC (higher DC voltages available on request)

Enclosure ratings

NEMA 1, 3R, 4X or 12; Class I Div 2 for hazardous locations

Control architecture

Relay logic, PLC/HMI, distributed I/O, SCADA integration

Network protocols

EtherNet/IP, Modbus TCP, Profibus, Profinet, RS‑485

I/O types

Analog, digital, thermocouple, RTD, 24 VDC, and 120 V control circuits

Documentation

Point‑to‑point schematics, panel schedule,s and QA records

Standards & codes

UL 508A, NFPA 79, NEC Article 409, ANSI/ISA guidelines

Beyond these baselines, our engineers can specify insulated bus bars, enhanced surge protection, arc‑flash mitigation, UL 698A intrinsically safe design, and integration with UPS systems, MCCs, generators, or building management systems.

Our Process: From Concept to Commissioning

We manage your project from initial concept through operation. Here’s how our process works:

Consult & Design

Review your one‑line diagrams, control narratives, and process requirements; identify voltage, enclosure, and hazard ratings; develop preliminary design concepts.

Engineer & Build

Produce detailed CAD drawings, wiring schematics, I/O lists, and bill of materials; select devices (relays, PLCs, drives, HMIs) based on your specifications and industry standards.

Deliver & Install

Ship fully assembled panels to the site; provide installation guidance or on‑site assistance for mounting, wiring, and start‑up.

Fabricate & Test

Build panels in our UL 508A shop; perform point‑to‑point wiring checks, functional tests, and arc‑flash labeling; provide factory acceptance testing (FAT) upon request.

Commission & Support

Commission PLC logic, configure SCADA/HMI screens, integrate with existing systems; deliver QA records; provide training and ongoing support for upgrades or maintenance.

Industries We Serve

Our industrial control systems support mission‑critical applications across a wide range of industries. We tailor each control panel to meet the environmental, load and regulatory requirements of your sector:

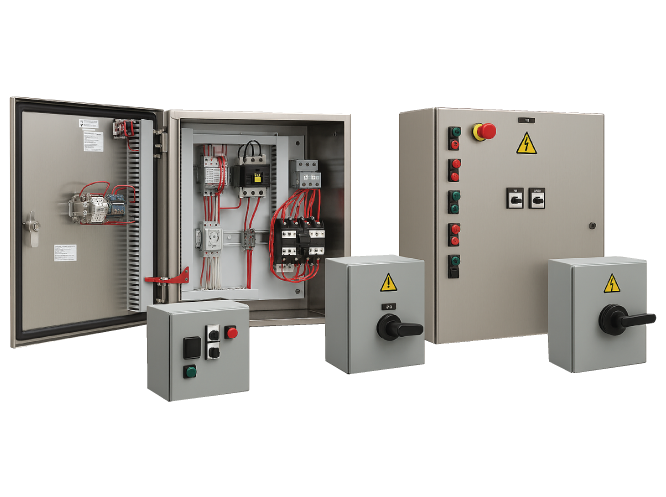

Why Choose Pinnacle for Control Panels

Choosing Pinnacle means partnering with an engineering team that does more than assemble boxes. We deliver integrated control systems designed for performance, compliance and long‑term reliability:

  • UL 508A Shop & Compliance – Every panel is engineered and fabricated in our UL‑certified shop; we adhere to NEC, NFPA 79 and ANSI/ISA standards.
  • Engineer‑to‑Engineer Support – You work directly with our electrical and automation engineers from concept through commissioning.
  • Made in the USA & Fast Delivery – Panels are built in Missouri; standard lead times range from 2–6 weeks, with rush services available.
  • Documentation & QA – Each panel ships with complete schematics, panel schedules, I/O lists and QA records, ready for AHJ review.
  • Customization & Scalability – We can match existing cabinets, replicate OEM designs or develop modular panels that grow with your operation.
  • Integrated Solutions – Beyond control panels, we build MCCs, switchgear, prefabricated buildings and provide field services, giving you a single source for power and control.

FAQs

Yes. All of our control panels are designed and manufactured in our UL 508A‑certified shop and carry the UL 508A listing.

We build panels up to 600 V AC and can design for higher DC voltages. Amp ratings vary by application, so we review your load profiles to specify the right ratings.

Absolutely. We integrate Allen‑Bradley, Siemens, Schneider and other PLCs/HMIs, along with metering, power monitoring and UPS systems. Let us know your preferred platforms or provide your bill of materials.

Yes. Our engineers can assist with installation, programming, commissioning and operator training to ensure your system performs as intended.

Every panel ships with point‑to‑point schematics, panel schedules, I/O lists, QA records and user manuals to satisfy AHJ review and ongoing maintenance requirements.

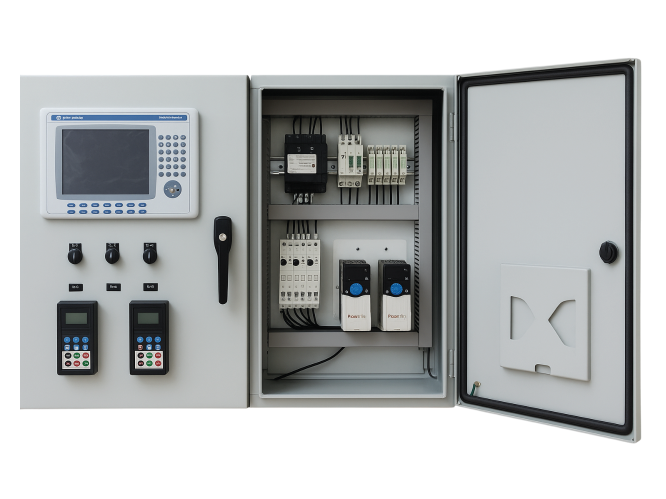

Let’s Build Your Next Control Panel

At Pinnacle Power & Controls, we don’t just assemble panels — we deliver engineered control solutions tailored to your facility’s demands. Whether you’re upgrading an existing system, expanding capacity or commissioning a new line, our team provides safe, reliable and compliant panels built to your specifications.

Ready to get started?

Talk to us now or Upload your control panel specs to receive a fast, engineered quote and discover how our control solutions can help you achieve your project’s goals.
