VFD Control Panels Engineered for Energy Efficiency & Process Control
Built to UL 508A Standards. Customized for Your Application. Delivered Fast.
At Pinnacle Power & Controls, we design and manufacture custom VFD control panels engineered for precise motor control, energy efficiency, and long-term reliability. Built in our UL 508A-certified U.S. panel shop, our Variable Frequency Drive (VFD) systems are tailored to your site’s voltage, horsepower, enclosure rating, and process control requirements.
Whether you’re managing pumps in a water treatment facility, fans in a data center, or conveyors on a production line, our drive panels deliver the speed control, soft start/stop capability, and smart automation your process demands. We support all major VFD OEMs, including Allen-Bradley, ABB, Siemens, Yaskawa, and Schneider, fully integrated into your system’s architecture.
With fast lead times, real-time diagnostics, and field-ready documentation, Pinnacle helps facilities reduce downtime, cut energy costs, and run safer, smarter, and faster.

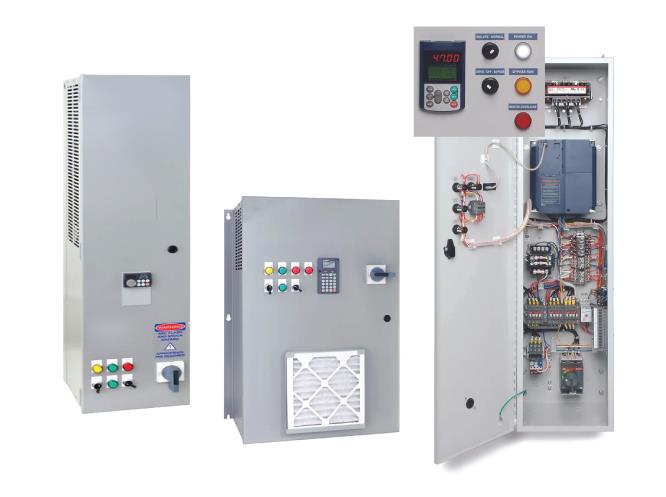

Understanding VFD Panels: Speed, Safety & Smart Motor Control
A VFD control panel (Variable Frequency Drive panel) is an integrated electrical enclosure that regulates the speed, torque, and energy consumption of electric motors. At Pinnacle Power & Controls, our VFD panels are engineered to meet your facility’s motor load, voltage, and application-specific requirements — all while adhering to UL 508A compliance and NEC standards.
By converting fixed-frequency input into a variable-frequency output, a VFD allows for soft starts, smooth acceleration, and precise speed control, significantly extending motor lifespan and improving system efficiency. These panels are especially effective in variable load applications like pumps, fans, conveyors, mixers, and HVAC systems.
Each VFD panel we build is custom-designed to integrate with PLCs, HMIs, SCADA, and other automation systems. We support analog/digital I/O, remote diagnostics, and protective devices like line reactors, bypass switches, and motor fuses — ensuring safe operation across demanding industrial environments.
Whether you need a wall-mounted VFD enclosure for a small pump or a multi-door drive cabinet for process control, our solutions are engineered to power your facility smarter.

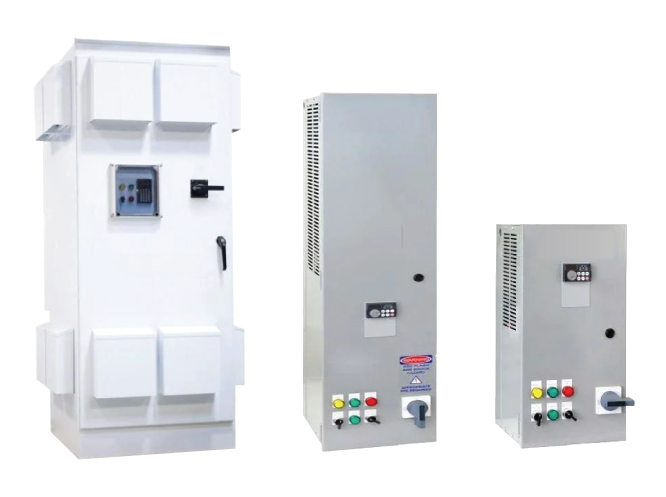

Smarter VFD Panels. Built to Perform. Engineered to Last.
At Pinnacle Power & Controls, our VFD control panels are engineered with performance, protection, and integration at their core. Whether you’re driving fans in a data center or pumps in a water treatment facility, our panels are designed to optimize energy use, minimize downtime, and extend equipment life.
Built in our UL 508A-certified facility, each panel is pre-wired, load-tested, and delivered with complete QA documentation and certified schematics. We tailor the configuration — from cabinet size and voltage to interface type and communication protocols — for seamless fit and long-term operability.
For facilities with automation goals, our PLC- and SCADA-ready VFD systems include smart diagnostics, energy analytics, and fault alerts. Plus, we offer full customization for harsh environments — including NEMA 1, 3R, 4, and 4X enclosures and explosion-proof builds.
Key Features of Pinnacle VFD Panels:
Industry Applications & Use Cases
Where Pinnacle VFD Panels Deliver — From Pumps to Precision Drives
From pump skids to conveyor lines, Pinnacle’s Variable Frequency Drive (VFD) panels are deployed across a wide range of industrial environments that demand motor efficiency, soft starts, and automation-ready performance.
Every industry has different operational and environmental requirements, and our VFD systems are built to meet them. Whether you need NEMA 4X-rated enclosures for corrosive washdowns or Class I Div 2 builds for oilfield equipment, we engineer panels that withstand your facility’s conditions while integrating into your control infrastructure.
Our drive systems are trusted by engineers, plant managers, and OEMs for controlling flow rates, torque, and speed, and are often combined with PLCs, HMIs, and SCADA for total process visibility.
Common Industry Applications:
Why Engineers & Operators Choose Pinnacle for VFD Systems
UL-Certified VFD Panels. Built Faster. Backed by Real Engineering.
At Pinnacle Power & Controls, we’re more than just panel builders. We’re engineers who understand the motor control challenges your facility faces every day. Our UL 508A-certified VFD panels are trusted across industries because they’re designed for compliance, performance, and speed, not compromise.
Whether you’re running motors in a utility-grade plant or automating packaging lines, our team works directly with your engineers to deliver field-proven systems — from soft-start setups to multi-drive networks with PLC/SCADA integration.
What sets us apart? We don’t deliver panels that just “look good on paper.” Every VFD panel we ship is built in our U.S.-based ISO-aligned facility, tested to spec, and delivered ready for AHJ inspection — often in half the time of traditional integrators.
Why Teams Trust Pinnacle for VFD Panels:
Faster Production
2–4 week standard lead times, with rush builds for urgent needs
UL 508A + NEC/NFPA Compliance
Certified panels, documented for AHJ approvals and safety inspections
Custom Engineering Support
Direct engineer-to-engineer collaboration — no sales layer in between
SCADA & PLC-Ready Builds
Panels arrive ready to integrate with your automation architecture
Built in the USA
Manufactured in our Missouri facility with nationwide delivery
Support Beyond Delivery
QA documents, remote tech help, and retrofit upgrades when needed
Engineer-Verified FAQs About VFD Control Systems
Yes. Every VFD panel is built in our UL 508A-certified facility and undergoes full testing and inspection. We also include labeled documentation and schematics to ensure NEC, NEMA, and AHJ compliance right out of the box.
To get started, we typically need:
- Motor specs (HP, voltage, phase)
- Number of drives required
- Load type (pump, fan, conveyor, etc.)
- Enclosure rating (NEMA 1, 3R, 4X, etc.)
- Integration needs (PLC, SCADA, HMI)
- Any site-specific standards or specs
Absolutely. We specialize in turnkey VFD control systems that include PLCs (Allen-Bradley, Siemens, etc.), HMI touchscreen displays, and remote SCADA capabilities via Modbus or Ethernet/IP.
Our average lead time is 2–4 weeks, depending on complexity. We also offer expedited production for critical-path projects or plant shutdowns.
Yes. Every system comes with complete QA documentation, and we provide remote technical support, wiring diagrams, and help with retrofit or upgrade needs.

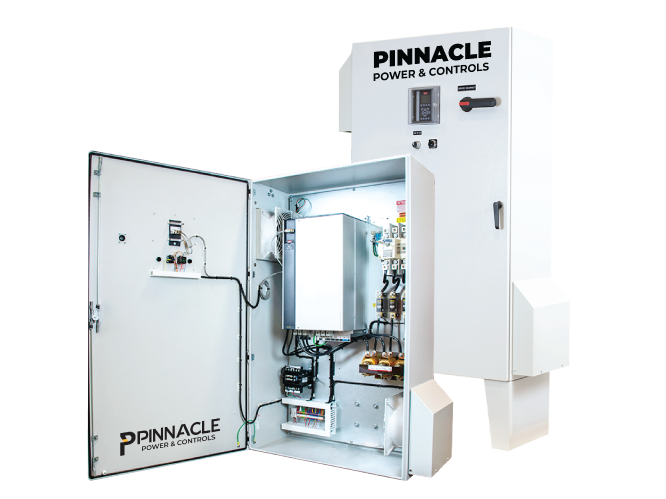

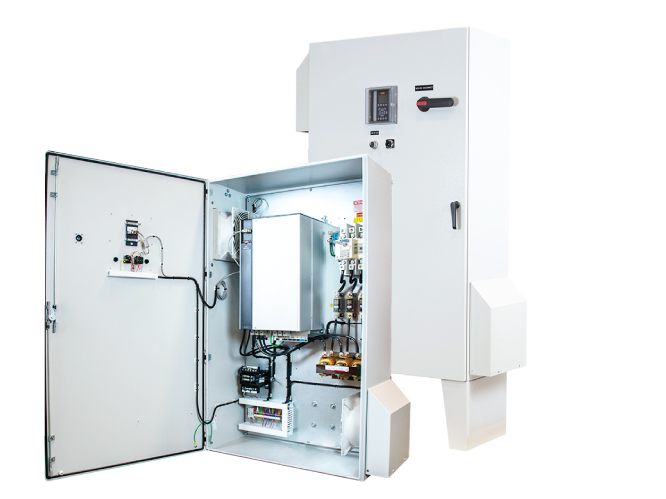

Let’s Power Smarter Motor Control — Together
Ready to Build Your VFD Control System?
At Pinnacle Power & Controls, we design and deliver UL 508A-certified VFD control panels that combine power, efficiency, and smart automation. Whether you’re managing motors for pumps, conveyors, fans, or complex process systems, our engineered drive solutions ensure long-term performance and real-world reliability.
From spec to shipment, we partner with your engineers to ensure your Variable Frequency Drive system is built right — and built fast. Need quotes, specs, or integration advice? Our control engineers are ready.
📍 Made in Missouri. Shipped Across the U.S.
📞 Need to fast-track your VFD project? Let’s talk.
